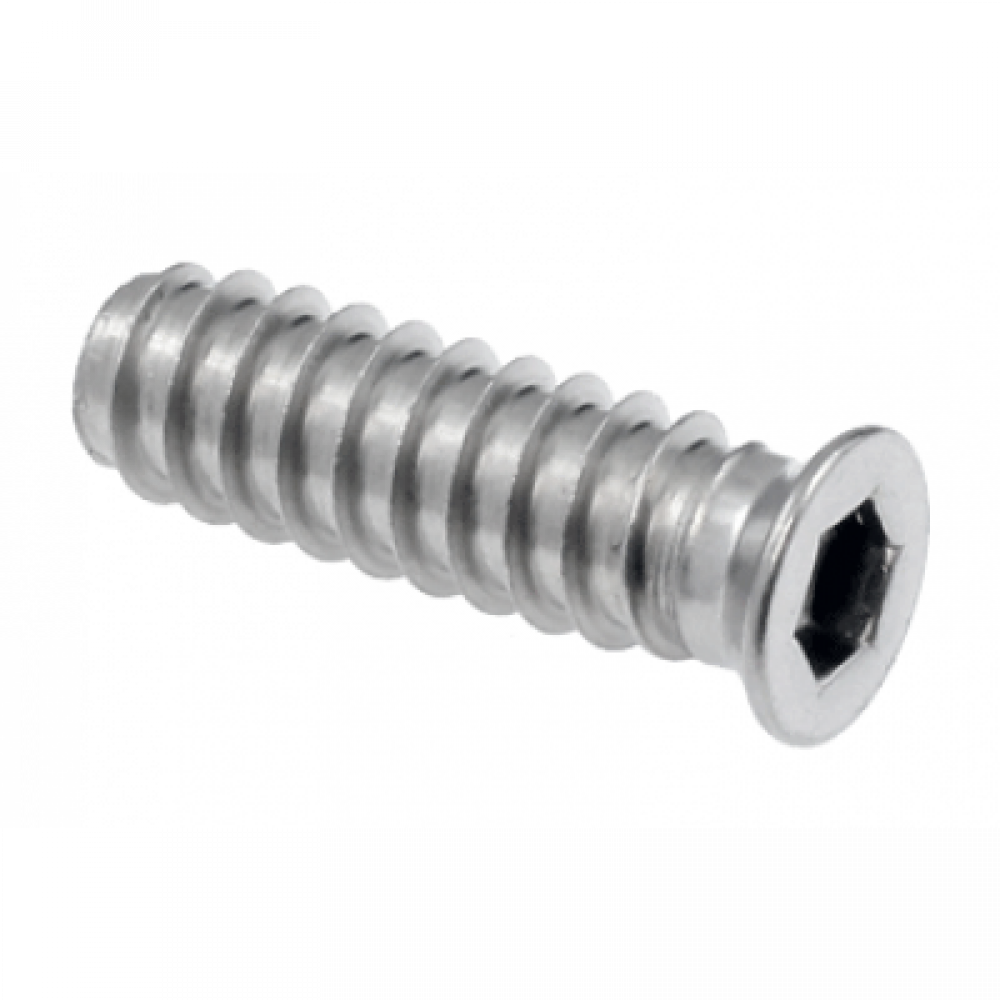

Threaded Insert – ALL SIZES

Threaded Insert AISI 304 Miami Stainless stocks the premium quality ProRig Threaded Inserts.  ProRig Threaded Inserts are manufactured to the highest standards giving you an extremely superior quality, superbly finished fitting.  ProRig Threaded Inserts are easy to install and come with right-hand and left-hand internal threads to make another aesthetically pleasing, streamline stainless steel balustrade system. This thread insert can be used with the Insert Swage Stud Balustrade System for timber posts.  You can find out more about this system by visiting the Insert Swage Stud System page or get an instant online quote by visiting our BALUSTRADE BUILDER   Code Thread D L Drill Size Hex Drive Pull Out (kg)* S3310L-0632 M6 LHT 12.5 32 7.5mm 6mm AF 670 S3310R-0632 M6 RHT 12.5 32 7.5mm 6mm AF 670 S3310R-0832 M8 RHT 14 30 9.5mm 8mm AF 810 * Pull out strengths are based on the maximum pull out loads achieved using MGP 10 Structural Pine.  They are intended as a guide only and a safety factor should be applied to these readings depending on the situation of use.  Much greater results can be achieved using hardwoods; for example Kwila will hold around 80-90% more tension.
