Retrofit Jumbo Fire Collar

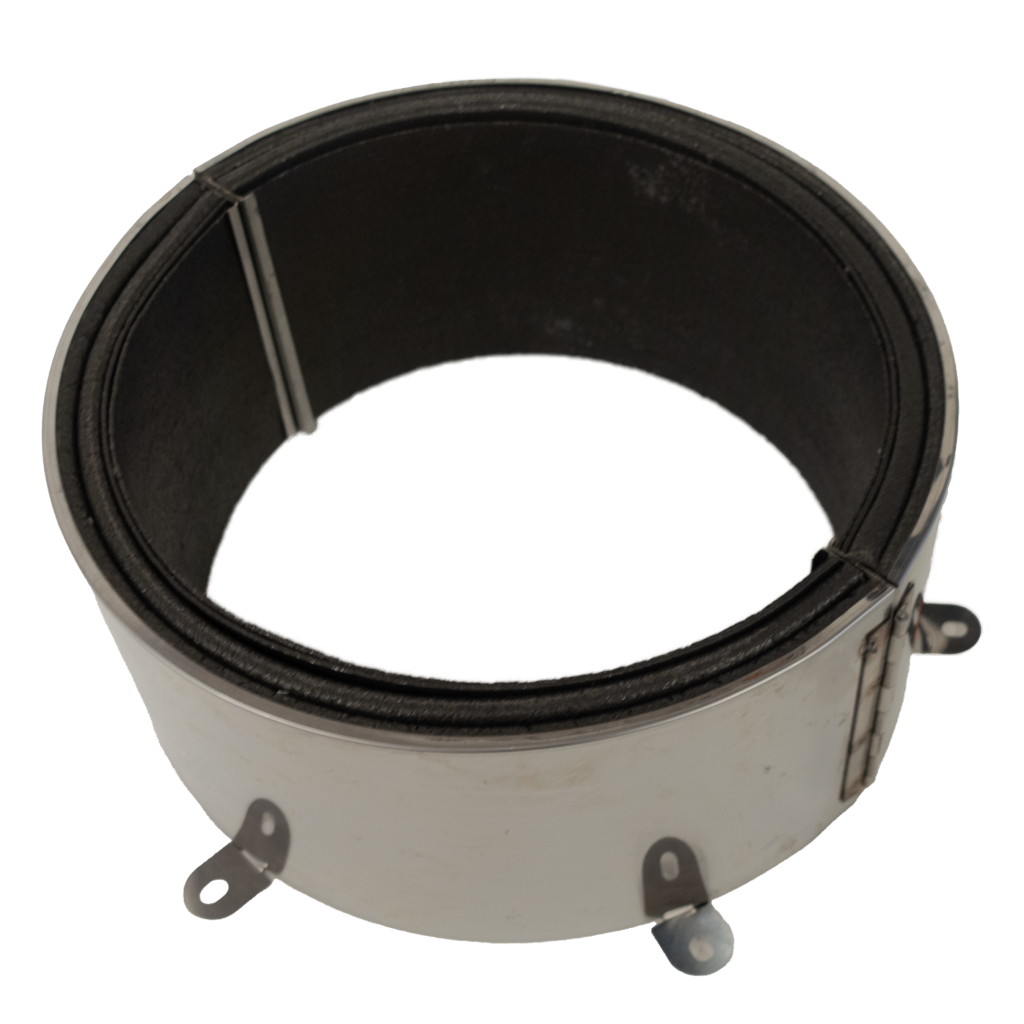

Description Ryanfire SL-X  Jumbo Fire Collars are designed to maintain the fire resistance of fire rated floors. The SL collars consist of a high quality stainless steel case lined with a highly reactive graphite infused material. These collars are designed to seal large bore combustible pipes. Upon exposure to heat the Jumbo SL collar will quickly and effectively close any openings that may form due to the melting away of services.  For Specific applications, design and installation instructions are detailed on the relevant “V” Drawing. Ryanfire SL- X Jumbo Fire Collars have been tested and assessed in  accordance with AS1530.4:2014 and AS4072.1:2005 at  IANZ/NATA accredited laboratories, and environmentally tested to ASTM-B117 for semi-external use.   Key Features Intumescent fire stopping for PVC pipes Actively expands during fire conditions, forms a tight seal and prevents the spread of fire through the service penetration. Fire tested in concrete floor- storm water pipe systems . Solid hinge and clasp with durable powder-coated finish. Simple design allows for quick and easy installation of the collars. Ø225mm storm water PVC pipe through 125mm concrete floor. (250 mm OD)   Retrofit Fire Collar Sizes Available: 200mm 250mm – suitable for 225mm storm water pipes   To upgrade an existing floor waste penetration, check out our innovative and cost-efficient retrofit floor waste collar, the BladeRUNNER. In Stock
