LoRa SX1262 Devkit, 22dBm, 850-930MHz, USB, SMA, U.FL

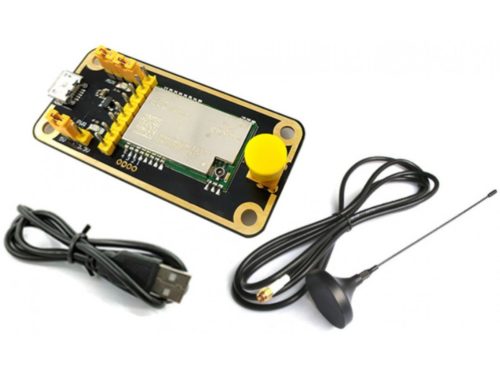

The E22-900TBL-01 is a high quality LoRa wireless development kit from EBYTE, based around the Semtech SX1262 chip. It consists of the E22-900T22S module, with an added USB serial communication circuit, and an USB and SMA connector. The E22 series is one of the first wireless modules to adopt Semtech's SX1262 and SX1268 RF chips. This chip provides a variety of modulation methods, such as LoRaTM and traditional GFSK. Its special LoRaTM modulation method increases the communication distance. This module is configured via software for frequencies between 850~930 MHz. The correct antenna has to be used for the programmed frequency. Typical frequencies would be: 868MHz in Europe(EU) 865MHz to 867MHz in India 902MHZ to 928MHz in the US 915MHZ to 928MHz in the Australia 920MHZ to 923MHz in Japan, Malaysia, Singapore, Indonesia These modules are designed and manufactured with quality in mind. High quality capacitors and German Wurth wire wound inductors are used. A temperature compensated crystal oscillator is used for timing, which is critical for low error long distance LoRa communication. To view the PDF Datasheet for the E22-900TBL-01 module, click here.see this page: 99tech.com.au/m/lora-e22-900tbl-01_datasheet_v1.0.pdf To view the PDF Datasheet for the E22-900T22S module, click here.see this page: 99tech.com.au/m/lora-e22-900t22s_usermanual_v1.4.pdf For additional information, see the manufacturer's product page.product page:www.ebyte.com/en/product-view-news.aspx?id=636 Features USB Connector: Micro USB Connector RF Connectors: U.FL (UFL or IPEX) and SMA connector IC: SX1262 Frequency: 850.125~930.125 Power: 22dBm  (Max. Power 160mW) Distance: 4km Interface: UART and USB Parameters RF Parameter Value Remark Working frequency 850.125~930.125   Transmitting power 22 dBm Max. Power (160mW) Receiving sensitivity -138 dBm - Air data rate 0.3k~62.5kbps - Test distance 5000m In open and clear air, with maximum power, 5dBi antenna gain, height of 2m   Hardware Parameter Value Remark Size 58 * 28 mm   Antenna type IPEX / Stamp hole   Communication interface UART and USB   Package SMD     Package Includes 1 x Wireless Module 1 x USB Cable 1 x Antenna and Cable [mx_insert-post-ebay slug="ebay-t-default"] SKU: LOR0-913 Categories: LoRa Modules, Wireless Modules Tags: lora, sx1262, wireless
